Roof Tiles

With their distinctive natural appearance, Western Red Cedar shingles will lend a touch of individuality to your project. Their rich, warm colour tones and texture will add character and blend naturally with the environment.

Western Red Cedar shingles and shakes also provide a high degree of insulation, keeping buildings warm in winter and cool in summer. Their low carbon footprint and the fact that they are the only renewable roofing material makes cedar shingles and shakes a true eco-material.

Western Red Cedar heartwood has a proven life expectancy of 60 + years due to the presence of natural oils that act as preservatives to help the wood resist decay.

• Easy to install
• High Bond Strength
• Ideal For New And Refurbishment Projects
• Made For External Use
• Layered To Ensure Properties Are Completely Protected Against The Elements
• Highly Adhesive
• Compatible With Most Bituminous Membranes
• Waterproof
• Made In Italy

Technical

Length                            16 m

Thickness                       2 mm

Width                              1 m

Interior or Exterior Use   Exterior

Colour                             Black

Finish                              Sanded Upper

Pack Coverage               16 M2

Type                                Roofing

Made To Order               No

Manufacturer Model No  Etmt/app/unilay

Country Origin                 Italy

Brand Name                    Easy Trim

Range Description           Roofing

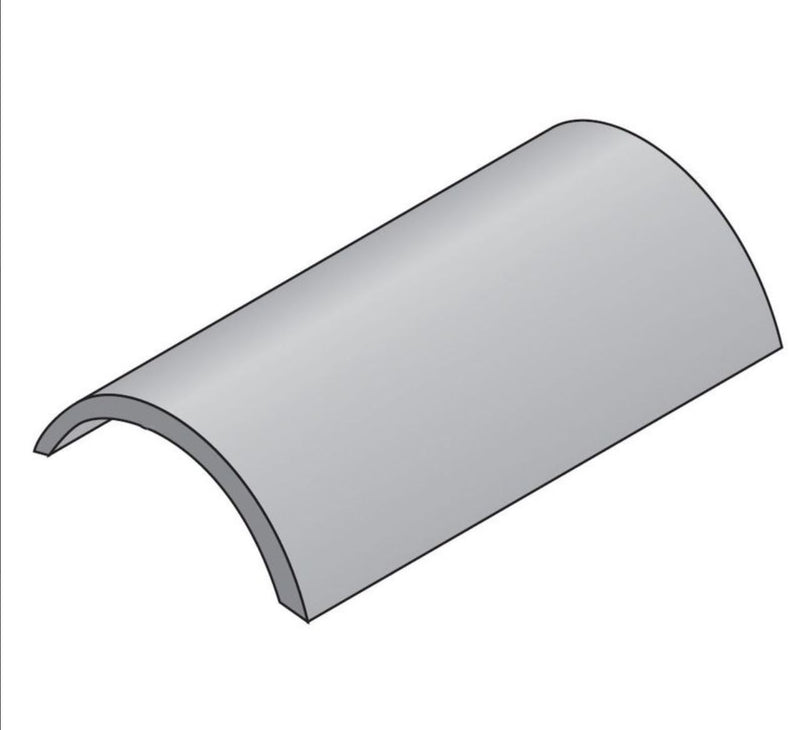

Hip tiles are used on the hip of the roof where two inclined surfaces meet at an external angle. Standard hip tiles such as a third round and angled are available to complete the look of your project.

Product Specification

Colour: Smooth Grey

Width: 248mm

Length: 457mm

Height: 88mm

Minimum Pitch: 17.5°

Maximum Pitch: 45°

Roof Surface Area = 2,000 sq ft = $25,181

Roof Surface Area = 2,500 sq ft = $31,460

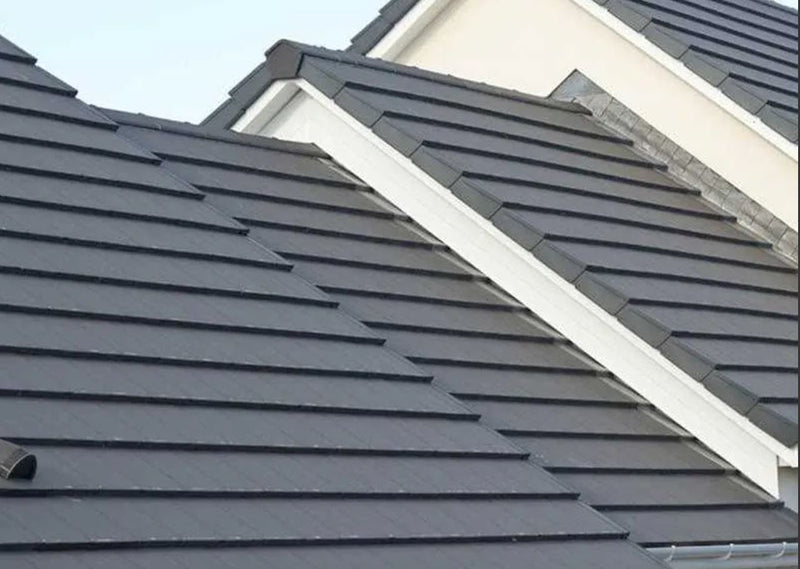

A brilliant substitute for slate, these Modern concrete roof tiles are low in environmental impact and simple to install. Sturdy and durable, they have a Covering Capacity (Net, Roof) of 9.9 tiles/m² at 75mm headlap and 10.7 tiles/m² at 100mm headlap.

Features & Benefits: Marley Modern Interlocking Concrete Roof Tile Smooth Grey - Pallet of 192

• Smooth Grey
• Pallet of 192
• Minimum Pitch of 17.5° Smooth / 25° Granular and Maximum Pitch of 90°
• Tile Nails: 50mm x 3.35mm
• Sustainable and cost-effective

Sustainability

• These Marley tiles have been A+ rated in the BRE Green Guide (based on generic rating for UK produced concrete interlocking tiles Element Refs - 812410007, 812410018, 812410049 and are BES 6001 Responsible Sourcing certified.

Battens

• Battens required (net, roof) are 2.9 lin.m/m² at 75mm headlap and 3.1 lin.m/m² at 100mm headlap. Recommended batten sizes are 38mm x 25mm for rafters and/or supports that do not exceed 450mm centres and 50mm x 25mm for rafters and/or supports that do not exceed 600mm centres (both fixed to BS 5534).
