Extractor Fans

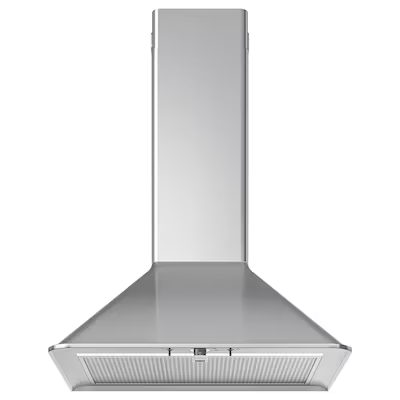

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.

You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.

Designer
IKEA of Sweden



Good to know
Wall mounted extractor hood with 4 different speeds.

Extraction rate in exhausting mode: 552 m³/h.

Noise level at max. exhaust speed: 65 dB (A).

Extraction rate in re-circulation mode: 398 m³/h.

Voltage: 220-240V.

Noise level at max. re-circulation speed: 71 dB (A).

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Brand Name	IKEA
Model Identifier	MATTRADITION 503.923.31
Energy efficiency class	A
Annual energy consumption	43 kWh/annum
Fluid Dynamic Efficiency	31.6 %
Fluid Dynamic Efficiency class	A
Lighting Efficiency	29 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	86 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	236 m³/h
Air flow at maximum speed in normal use	550 m³/h
Air flow at intensive or boost setting	NA m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	51 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	65 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	NA dB
Power consumption in Off mode	NA Watt
Power consumption in standby mode	NA Watt

Measurements

Width: 60.0 cm

Depth: 45.8 cm

Min. height extraction: 74.5 cm

Max. height extraction: 106.7 cm

Min. height recirculation: 74.5 cm

Max. height recirculation: 114.2 cm

Width of chimney: 21.0 cm

Depth of chimney: 18.0 cm

Weight: 11.60 kg

Cord length: 1.3 m

Motor power: 210 W

• Package details
  MATTRADITIONWall mounted extractor hoodArticle Number503.923.31

  Width: 57 cm

  Height: 35 cm

  Length: 64 cm

  Weight: 13.33 kg

  Package(s): 1

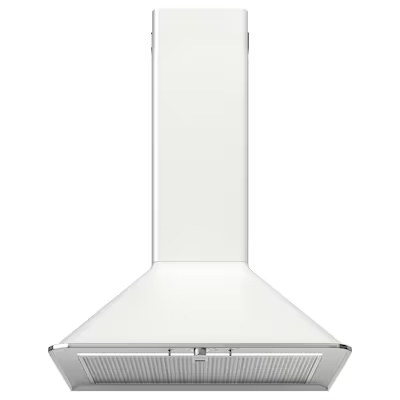

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.

You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.

Designer
IKEA of Sweden


Good to know
Wall mounted extractor hood with 4 different speeds.

Extraction rate in exhausting mode: 552 m³/h.

Noise level at max. exhaust speed: 65 dB (A).

Extraction rate in re-circulation mode: 398 m³/h.

Voltage: 220-240V.

Noise level at max. re-circulation speed: 71 dB (A).

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Brand Name	IKEA
Model Identifier	MATTRADITION 603.688.11
Energy efficiency class	A
Annual energy consumption	43 kWh/annum
Fluid Dynamic Efficiency	31.6 %
Fluid Dynamic Efficiency class	A
Lighting Efficiency	29 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	86 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	236 m³/h
Air flow at maximum speed in normal use	550 m³/h
Air flow at intensive or boost setting	NA m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	51 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	65 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	NA dB
Power consumption in Off mode	NA Watt
Power consumption in standby mode	NA Watt

Measurements

Width: 60.0 cm

Depth: 45.8 cm

Min. height extraction: 74.5 cm

Max. height extraction: 106.7 cm

Min. height recirculation: 74.5 cm

Max. height recirculation: 114.2 cm

Width of chimney: 20.8 cm

Depth of chimney: 17.8 cm

Weight: 11.00 kg

Cord length: 1.3 m

Motor power: 210 W

• Package details
  MATTRADITIONWall mounted extractor hoodArticle Number603.688.11

  Width: 57 cm

  Height: 35 cm

  Length: 64 cm

  Weight: 12.99 kg

  Package(s): 1

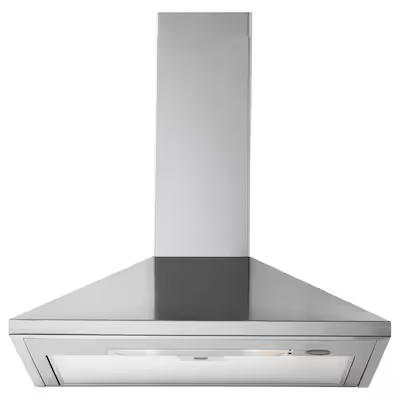

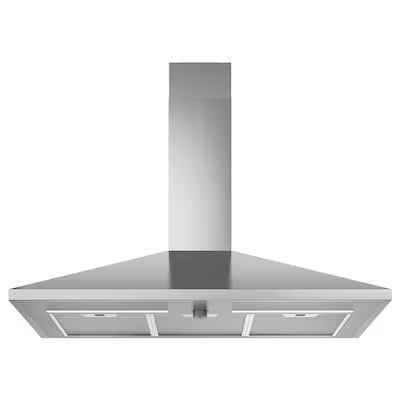

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode: 400 m³/h.

Noise level at max. exhaust speed: 65 dB (A).

Extraction rate in re-circulation mode: 190 m³/h.

Noise level at max. re-circulation speed: 70 dB (A).

Voltage: 220-240V.

Wall mounted extractor hood with 3 different speeds.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with charcoal filter NYTTIG FIL 400.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.

Safety & compliance
This product bears the CE mark.

Brand Name	IKEA
Model Identifier	RYTMISK 10392328
Energy efficiency class	B
Annual energy consumption	40 kWh/annum
Fluid Dynamic Efficiency	18,2 %
Fluid Dynamic Efficiency class	C
Lighting Efficiency	37 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	85,1 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	200 m³/h
Air flow at maximum speed in normal use	400 m³/h
Air flow at intensive or boost setting	N/A m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	53 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	65 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	N/A dB
Power consumption in Off mode	0 Watt
Power consumption in standby mode	N/A Watt

Measurements

Width: 90.0 cm

Depth: 47.1 cm

Min. height extraction: 62.0 cm

Max. height extraction: 99.5 cm

Min. height recirculation: 71.5 cm

Max. height recirculation: 99.5 cm

Width of chimney: 16.7 cm

Depth of chimney: 16.9 cm

Weight: 8.30 kg

Cord length: 1.1 m

Motor power: 110 W

Choose a different size

• Package details
  RYTMISKWall mounted extractor hoodArticle Number103.923.28

  Width: 55 cm

  Height: 27 cm

  Length: 98 cm

  Weight: 10.70 kg

  Package(s): 1

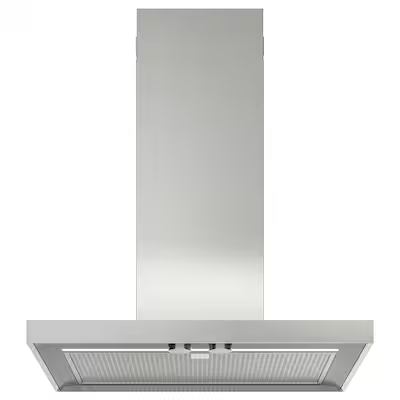

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.

You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode: 511 m³/h.

Noise level at max. exhaust speed: 65 dB (A).

Extraction rate in re-circulation mode: 398 m³/h.

Noise level at max. re-circulation speed: 70 dB (A).

Voltage: 220-240V.

Wall-mounted extractor hood with 4 speeds.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 559.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.



Brand Name	IKEA
Model Identifier	MATÄLSKARE 603-688-06
Energy efficiency class	A
Annual energy consumption	41 kWh/annum
Fluid Dynamic Efficiency	29.3 %
Fluid Dynamic Efficiency class	A
Lighting Efficiency	203 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	86 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	213 m³/h
Air flow at maximum speed in normal use	511 m³/h
Air flow at intensive or boost setting	NA m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	46 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	65 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	NA dB
Power consumption in Off mode	NA Watt
Power consumption in standby mode	NA Watt

Measurements

Width: 59.8 cm

Depth: 45.8 cm

Height: 42.0 cm

Min. height extraction: 63.5 cm

Max. height extraction: 107.5 cm

Min. height recirculation: 63.3 cm

Max. height recirculation: 108.8 cm

Width of chimney: 23.7 cm

Depth of chimney: 24.7 cm

Weight: 12.90 kg

Cord length: 1.2 m

Motor power: 210 W

• Package details
  MATÄLSKAREWall mounted extractor hoodArticle Number603.688.06

  Width: 57 cm

  Height: 36 cm

  Length: 64 cm

  Weight: 15.02 kg

  Package(s): 1

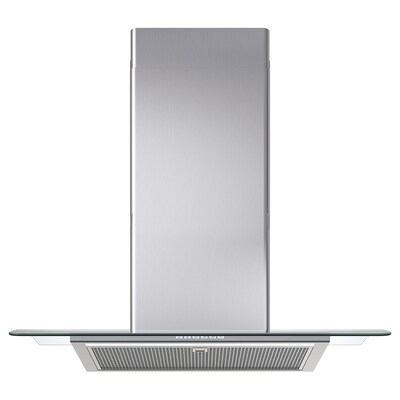

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Control panel placed at front for easy access and use.

The tempered glass surface is easy to clean.

Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode with booster function: 753 m³/h.

Extraction rate in exhausting mode: 453 m³/h.

Noise level at max. exhaust speed: 60 dB (A).

Extraction rate in re-circulation mode: 422 m³/h.

Noise level at max. re-circulation speed: 70 dB (A).

Voltage: 220-240V.

Wall mounted extractor hood with 3 different speeds and booster function.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 559.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.


Safety & compliance
This product bears the CE mark.

Brand Name	IKEA
Model Identifier	BALANSERAD 60526995
Energy efficiency class	A+
Annual energy consumption	42 kWh/annum
Fluid Dynamic Efficiency	35.1 %
Fluid Dynamic Efficiency class	A
Grease Filtering Efficiency	76 %
Grease Filtering Efficiency class	C
Lighting Efficiency	29 Lux/watt
Lighting Efficiency class	A
Air flow at minimum speed in normal use	140 m³/h
Air flow at maximum speed in normal use	390 m³/h
Air flow at intensive or boost setting	720 m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	36 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	58 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	71 dB
Power consumption in Off mode	N/A Watt
Power consumption in standby mode	0.49 Watt

Measurements

Width: 79.8 cm

Depth: 45.2 cm

Min. height extraction: 69.6 cm

Max. height extraction: 119.5 cm

Min. height recirculation: 73.4 cm

Max. height recirculation: 126.2 cm

Width of chimney: 31.0 cm

Depth of chimney: 29.0 cm

Cord length: 1.2 m

Motor power: 250 W

• Package details
  BALANSERADWall mounted extractor hoodArticle Number605.269.95

  Width: 67 cm

  Height: 50 cm

  Length: 86 cm

  Weight: 23.70 kg

  Package(s): 1

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode: 640 m³/h.

Noise level at max. exhaust speed: 63 dB (A).

Extraction rate in re-circulation mode: 383 m³/h.

Noise level at max. re-circulation speed: 68 dB (A).

Wall mounted extractor hood with 4 different speeds.

Voltage: 220-240V.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.


Safety & compliance
This product bears the CE mark.

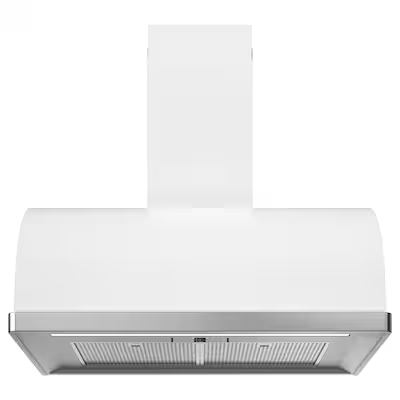

Brand Name	IKEA
Model Identifier	FULLSTÄNDIG 60527018
Energy efficiency class	A+
Annual energy consumption	36.9 kWh/annum
Fluid Dynamic Efficiency	35.4 %
Fluid Dynamic Efficiency class	A
Lighting Efficiency	60.1 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	85.1 %
Grease Filtering Efficiency class	C
Air flow at minimum speed in normal use	280 m³/h
Air flow at maximum speed in normal use	640 m³/h
Air flow at intensive or boost setting	N/A m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	46 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	65 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	N/A dB
Power consumption in Off mode	N/A Watt
Power consumption in standby mode	N/A Watt

Measurements

Width: 79.8 cm

Depth: 49.8 cm

Height: 34.6 cm

Min. height extraction: 75.6 cm

Max. height extraction: 102.3 cm

Min. height recirculation: 75.6 cm

Max. height recirculation: 109.5 cm

Width of chimney: 24.0 cm

Depth of chimney: 25.0 cm

Weight: 16.50 kg

Cord length: 1.4 m

Motor power: 250 W

• Package details
  FULLSTÄNDIGWall mounted extractor hoodArticle Number605.270.18

  Width: 58 cm

  Height: 43 cm

  Length: 113 cm

  Weight: 22.90 kg

  Package(s): 1

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

LED light source included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode: 400 m³/h.

Noise level at max. exhaust speed: 66 dB (A).

Extraction rate in re-circulation mode: 190 m³/h.

Voltage: 220-240V.

Noise level at max. re-circulation speed: 71 dB (A).

Wall mounted extractor hood with 3 different speeds.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with charcoal filter NYTTIG FIL 400.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.


Safety & compliance
This product bears the CE mark

Brand Name	IKEA
Model Identifier	RYTMISK 00392324
Energy efficiency class	B
Annual energy consumption	41 kWh/annum
Fluid Dynamic Efficiency	18,2 %
Fluid Dynamic Efficiency class	C
Lighting Efficiency	18 Lux/watt
Lighting Efficiency class	C
Grease Filtering Efficiency	85,1 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	200 m³/h
Air flow at maximum speed in normal use	400 m³/h
Air flow at intensive or boost setting	N/A m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	53 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	66 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	N/A dB
Power consumption in Off mode	0 Watt
Power consumption in standby mode	N/A Watt

Measurements

Width: 60.0 cm

Depth: 47.1 cm

Min. height extraction: 62.0 cm

Max. height extraction: 99.5 cm

Min. height recirculation: 71.5 cm

Max. height recirculation: 99.5 cm

Width of chimney: 16.7 cm

Depth of chimney: 16.9 cm

Weight: 6.40 kg

Cord length: 1.09 m

Motor power: 110 W

Choose a different size

• Package details
  RYTMISKWall mounted extractor hoodArticle Number003.923.24

  Width: 55 cm

  Height: 27 cm

  Length: 68 cm

  Weight: 8.80 kg

  Package(s): 1

Product details

5 year guarantee. Read about the terms in the guarantee brochure.

Dimmable LED strip included; effectively illuminates the cooking surface and provide energy saving.

You can easily remove and clean the grease filter in the dishwasher.

The vertical angle of the fan allows you to easily see and reach saucepans and frying pans on the hob.

Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

Designer
IKEA of Sweden



Good to know
Extraction rate in exhausting mode with booster function: 700 m³/h.

Extraction rate in exhausting mode: 380 m³/h.

Noise level at max. exhaust speed: 60 dB (A).

Extraction rate in re-circulation mode: 365 m³/h.

Noise level at max. re-circulation speed: 78 dB (A).

Voltage: 220-240V.

Wall mounted extractor hood with 3 different speeds and booster function.

For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.

For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.

Flexible pipe for fan and charcoal filter sold separately.


Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.

Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.


Safety & compliance
This product bears the CE mark.

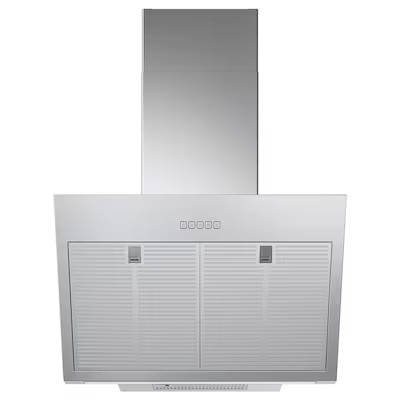

Brand Name	IKEA
Model Identifier	BEMÖTA 103.923.33
Energy efficiency class	A++
Annual energy consumption	35 kWh/annum
Fluid Dynamic Efficiency	37,6 %
Fluid Dynamic Efficiency class	A
Lighting Efficiency	58 Lux/watt
Lighting Efficiency class	A
Grease Filtering Efficiency	85,1 %
Grease Filtering Efficiency class	B
Air flow at minimum speed in normal use	250 m³/h
Air flow at maximum speed in normal use	380 m³/h
Air flow at intensive or boost setting	700 m³/h
Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use	53 dB
Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use	60 dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting	73 dB
Power consumption in Off mode	0,49 Watt
Power consumption in standby mode	N/A Watt



Measurements

Width: 69.8 cm

Depth: 38.1 cm

Min. height extraction: 80.2 cm

Max. height extraction: 105.2 cm

Min. height recirculation: 91.2 cm

Max. height recirculation: 117.2 cm

Width of chimney: 29.8 cm

Depth of chimney: 20.0 cm

Weight: 16.50 kg

Cord length: 1.1 m

Motor power: 270 W

• Package details
  BEMÖTAWall mounted extractor hoodArticle Number103.923.33

  Width: 60 cm

  Height: 51 cm

  Length: 79 cm

  Weight: 21.00 kg

  Package(s): 1
