Description
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 400 m³/h.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 190 m³/h.
Noise level at max. re-circulation speed: 70 dB (A).
Voltage: 220-240V.
Wall mounted extractor hood with 3 different speeds.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with charcoal filter NYTTIG FIL 400.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety & compliance
This product bears the CE mark.
Technical information
RYTMISK
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | RYTMISK 10392328 |
| Energy efficiency class | B |
| Annual energy consumption | 40 kWh/annum |
| Fluid Dynamic Efficiency | 18,2 % |
| Fluid Dynamic Efficiency class | C |
| Lighting Efficiency | 37 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 85,1 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 200 m³/h |
| Air flow at maximum speed in normal use | 400 m³/h |
| Air flow at intensive or boost setting | N/A m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 53 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 65 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | N/A dB |
| Power consumption in Off mode | 0 Watt |
| Power consumption in standby mode | N/A Watt |

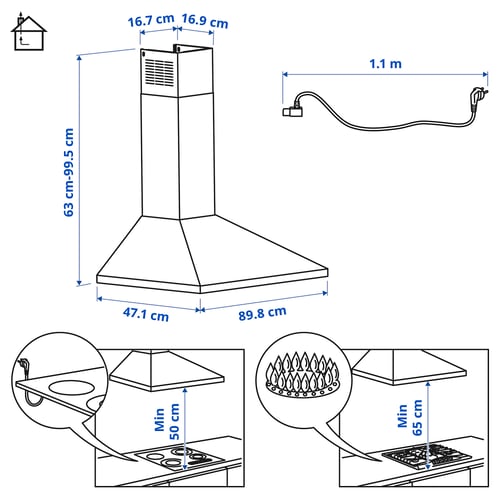

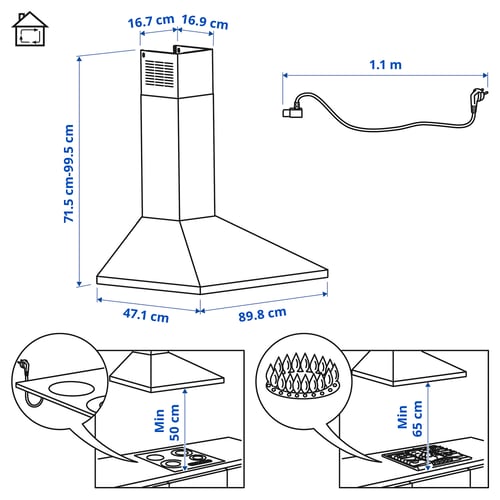

Measurements
Width: 90.0 cm
Depth: 47.1 cm
Min. height extraction: 62.0 cm
Max. height extraction: 99.5 cm
Min. height recirculation: 71.5 cm
Max. height recirculation: 99.5 cm
Width of chimney: 16.7 cm
Depth of chimney: 16.9 cm
Weight: 8.30 kg
Cord length: 1.1 m
Motor power: 110 W
-
RYTMISKArticle Number103.923.28
Width: 55 cm
Height: 27 cm
Length: 98 cm
Weight: 10.70 kg
Package(s): 1
