Description
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.
Designer
IKEA of Sweden
Good to know
Wall mounted extractor hood with 4 different speeds.
Extraction rate in exhausting mode: 552 m³/h.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 398 m³/h.
Voltage: 220-240V.
Noise level at max. re-circulation speed: 71 dB (A).
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 440.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Technical information
MATTRADITION
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | MATTRADITION 603.688.11 |
| Energy efficiency class | A |
| Annual energy consumption | 43 kWh/annum |
| Fluid Dynamic Efficiency | 31.6 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 29 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 86 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 236 m³/h |
| Air flow at maximum speed in normal use | 550 m³/h |
| Air flow at intensive or boost setting | NA m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 51 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 65 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | NA dB |
| Power consumption in Off mode | NA Watt |
| Power consumption in standby mode | NA Watt |

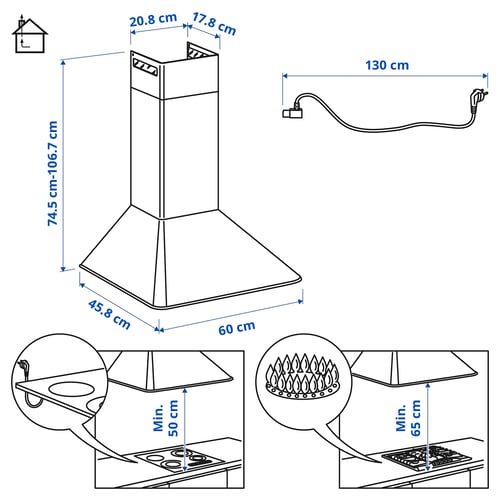

Measurements
Width: 60.0 cm
Depth: 45.8 cm
Min. height extraction: 74.5 cm
Max. height extraction: 106.7 cm
Min. height recirculation: 74.5 cm
Max. height recirculation: 114.2 cm
Width of chimney: 20.8 cm
Depth of chimney: 17.8 cm
Weight: 11.00 kg
Cord length: 1.3 m
Motor power: 210 W
-
MATTRADITIONArticle Number603.688.11
Width: 57 cm
Height: 35 cm
Length: 64 cm
Weight: 12.99 kg
Package(s): 1
