Description
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
LED light source included; effectively illuminates the cooking surface and provide energy saving.
Can be installed in two ways: ducted to the outside or in recirculation mode fitted with charcoal filter.
You can easily remove and clean the grease filter in the dishwasher. 1 grease filter included.
Designer
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 511 m³/h.
Noise level at max. exhaust speed: 65 dB (A).
Extraction rate in re-circulation mode: 398 m³/h.
Noise level at max. re-circulation speed: 70 dB (A).
Voltage: 220-240V.
Wall-mounted extractor hood with 4 speeds.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 559.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Technical information
MATÄLSKARE
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | MATÄLSKARE 603-688-06 |
| Energy efficiency class | A |
| Annual energy consumption | 41 kWh/annum |
| Fluid Dynamic Efficiency | 29.3 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 203 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 86 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 213 m³/h |
| Air flow at maximum speed in normal use | 511 m³/h |
| Air flow at intensive or boost setting | NA m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 46 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 65 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | NA dB |
| Power consumption in Off mode | NA Watt |
| Power consumption in standby mode | NA Watt |

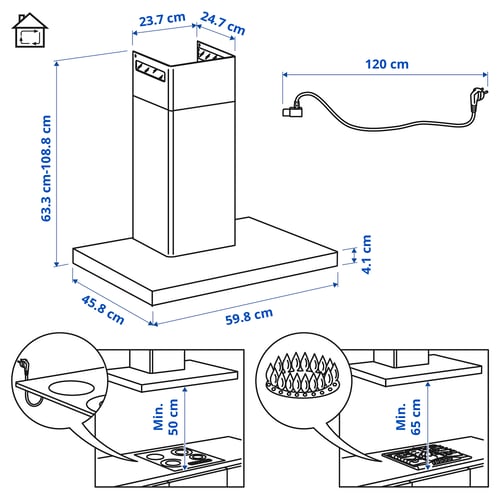

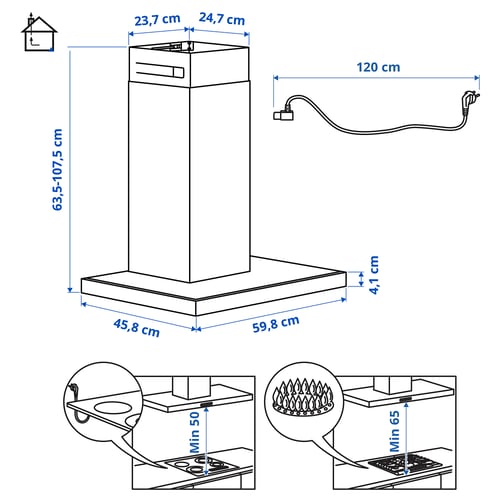

Measurements
Width: 59.8 cm
Depth: 45.8 cm
Height: 42.0 cm
Min. height extraction: 63.5 cm
Max. height extraction: 107.5 cm
Min. height recirculation: 63.3 cm
Max. height recirculation: 108.8 cm
Width of chimney: 23.7 cm
Depth of chimney: 24.7 cm
Weight: 12.90 kg
Cord length: 1.2 m
Motor power: 210 W
-
MATÄLSKAREArticle Number603.688.06
Width: 57 cm
Height: 36 cm
Length: 64 cm
Weight: 15.02 kg
Package(s): 1
