Description
Product details
The included LED bulb provides energy saving.
Control panel placed at front for easy access and use.
You can easily remove and clean the grease filter in the dishwasher.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
IKEA of Sweden
Good to know
Extraction rate in exhausting mode: 322 m³/h.
Noise level at max. exhaust speed: 73 dB (A).
Extraction rate in re-circulation mode: 116 m³/h.
Noise level at max. re-circulation speed: 77 dB (A).
Voltage: 220-240V.
For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.
For recirculation installation: to be completed with charcoal filter NYTTIG FIL 900.
Wall mounted extractor hood with 3 different speeds.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety & compliance
This product bears the CE mark.
Technical information
LAGAN
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | LAGAN 20392323 |
| Energy efficiency class | C |
| Annual energy consumption | 64 kWh/annum |
| Fluid Dynamic Efficiency | 15,5 % |
| Fluid Dynamic Efficiency class | D |
| Lighting Efficiency | 21 Lux/watt |
| Lighting Efficiency class | B |
| Grease Filtering Efficiency | 66 % |
| Grease Filtering Efficiency class | D |
| Air flow at minimum speed in normal use | 145 m³/h |
| Air flow at maximum speed in normal use | 320 m³/h |
| Air flow at intensive or boost setting | n.a m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 55 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 73 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | n.a dB |
| Power consumption in Off mode | n.a Watt |
| Power consumption in standby mode | n.a Watt |

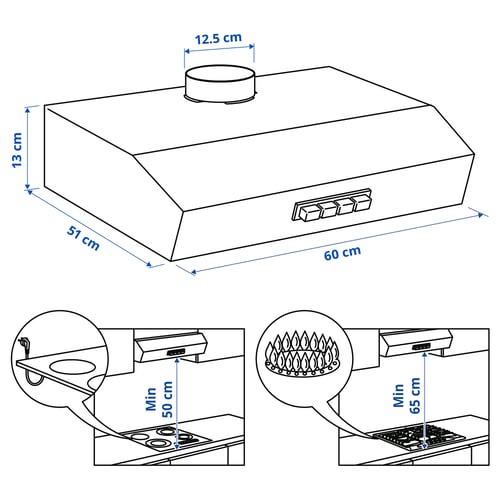

Measurements
Width: 60 cm
Depth: 51 cm
Min. height extraction: 13 cm
Weight: 6.40 kg
Cord length: 1.33 m
Motor power: 140 W
-
LAGANArticle Number203.923.23
Width: 55 cm
Height: 15 cm
Length: 62 cm
Weight: 6.10 kg
Package(s): 1
