Description
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Dimmable LED strip included; effectively illuminates the cooking surface and provide energy saving.
Touch control panel at front for easy access and use.
Eliminates cooking fumes and odours quickly and effectively thanks to the large extraction area.
You can easily remove and clean the grease filter in the dishwasher. 2 grease filters included.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
Brickstad/Palleschitz/Petersén
Good to know
Extraction rate in exhausting mode with booster function: 700 m³/h.
Extraction rate in exhausting mode: 380 m³/h.
Noise level at max. exhaust speed: 59 dB (A).
Extraction rate in re-circulation mode: 340 m³/h.
Noise level at max. re-circulation speed: 74 dB (A).
Voltage: 230V.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG TUB 150 flexible pipe and NYTTIG FIL 650 charcoal filter.
Wall mounted extractor hood with 3 different speeds and booster function.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety & compliance
This product bears the CE mark.
Technical information
KULINARISK
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | KULINARISK 403.831.48 |
| Energy efficiency class | A++ |
| Annual energy consumption | 35 kWh/annum |
| Fluid Dynamic Efficiency | 37,6 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 58.0 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 85,1 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 250 m³/h |
| Air flow at maximum speed in normal use | 380 m³/h |
| Air flow at intensive or boost setting | 700 m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 51 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 59 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | 72 dB |
| Power consumption in Off mode | 0,49 Watt |
| Power consumption in standby mode | n.a. Watt |

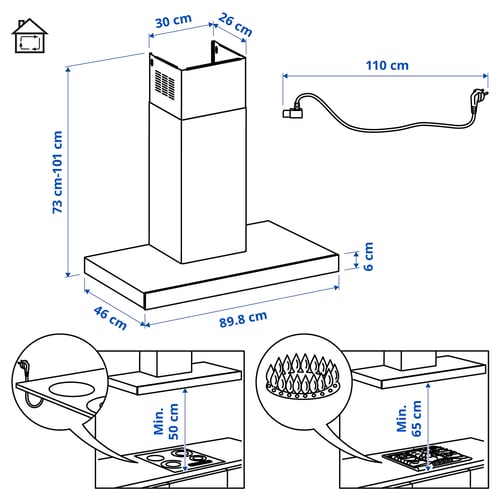

Measurements
Max. height w charcoal filter: 101.0 cm
Min. height w charcoal filter: 73.0 cm
Width: 90.0 cm
Depth: 46.0 cm
Height: 6.0 cm
Min. height: 73.0 cm
Max. height: 89.0 cm
Cord length: 1.1 m
Weight: 15.00 kg
Width of chimney: 30.0 cm
Depth of chimney: 26.0 cm
Max. height extraction: 89.0 cm
Min. height extraction: 73.0 cm
Max. height recirculation: 101.0 cm
Min. height recirculation: 73.0 cm
Motor power: 270 W
-
KULINARISKArticle Number403.831.48
Width: 60 cm
Height: 42 cm
Length: 98 cm
Weight: 22.00 kg
Package(s): 1
