Description
Product details
5 year guarantee. Read about the terms in the guarantee brochure.
Dimmable LED strip included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
The vertical angle of the fan allows you to easily see and reach saucepans and frying pans on the hob.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.
Designer
IKEA of Sweden
Good to know
Extraction rate in exhausting mode with booster function: 700 m³/h.
Extraction rate in exhausting mode: 380 m³/h.
Noise level at max. exhaust speed: 60 dB (A).
Extraction rate in re-circulation mode: 365 m³/h.
Noise level at max. re-circulation speed: 78 dB (A).
Voltage: 220-240V.
Wall mounted extractor hood with 3 different speeds and booster function.
For installation to a valve: to be completed with NYTTIG tube 150 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 150 and charcoal filter NYTTIG FIL 500.
Flexible pipe for fan and charcoal filter sold separately.
Materials & care
Care
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Safety & compliance
This product bears the CE mark.
Technical information
BEMÖTA
Wall mounted extractor hood
| Brand Name | IKEA |
| Model Identifier | BEMÖTA 103.923.33 |
| Energy efficiency class | A++ |
| Annual energy consumption | 35 kWh/annum |
| Fluid Dynamic Efficiency | 37,6 % |
| Fluid Dynamic Efficiency class | A |
| Lighting Efficiency | 58 Lux/watt |
| Lighting Efficiency class | A |
| Grease Filtering Efficiency | 85,1 % |
| Grease Filtering Efficiency class | B |
| Air flow at minimum speed in normal use | 250 m³/h |
| Air flow at maximum speed in normal use | 380 m³/h |
| Air flow at intensive or boost setting | 700 m³/h |
| Airborne acoustical A-weighted sound power emissions at minimum speed available in normal use | 53 dB |
| Airborne acoustical A-weighted sound power emissions at maximum speed available in normal use | 60 dB |
| Airborne acoustical A-weighted sound power emissions at intensive or boost setting | 73 dB |
| Power consumption in Off mode | 0,49 Watt |
| Power consumption in standby mode | N/A Watt |

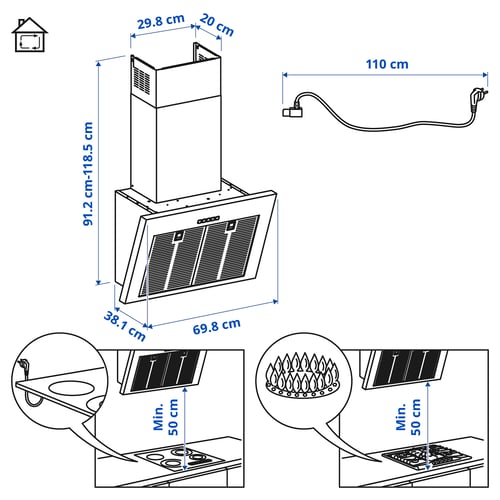

Measurements
Width: 69.8 cm
Depth: 38.1 cm
Min. height extraction: 80.2 cm
Max. height extraction: 105.2 cm
Min. height recirculation: 91.2 cm
Max. height recirculation: 117.2 cm
Width of chimney: 29.8 cm
Depth of chimney: 20.0 cm
Weight: 16.50 kg
Cord length: 1.1 m
Motor power: 270 W
-
BEMÖTAArticle Number103.923.33
Width: 60 cm
Height: 51 cm
Length: 79 cm
Weight: 21.00 kg
Package(s): 1
